Our Technology
Advanced powder production technologies delivering consistent, reliable, and cost-effective powders

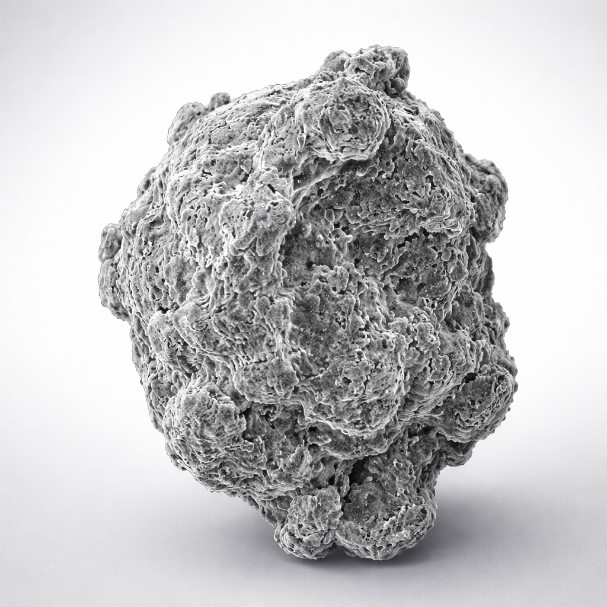

Water Atomised Powders
Our Water Atomised Metal Powders are manufactured using a controlled high-pressure water atomisation process involves high-pressure water jets breaking molten metal into fine droplets that solidify rapidly, producing powders with irregular particle morphology, excellent compressibility, and consistent physical and chemical properties.
Key Characteristics
- •Irregular particle shape for superior green strength and compatibility
- •Controlled particle size distribution to meet application-specific requirements
- •High Compressibility to achieve higher green and sintered densities at lower press loads
- •Stable chemical composition with low variation between batches
- •Good flowability and apparent density for consistent processing
- •Optimized surface characteristics suitable for sintering and secondary operations
Available Materials
- •Iron and iron-based alloys
- •Copper and copper-based powders
- •Bronze and specialty alloy grades
- •Customized compositions on request

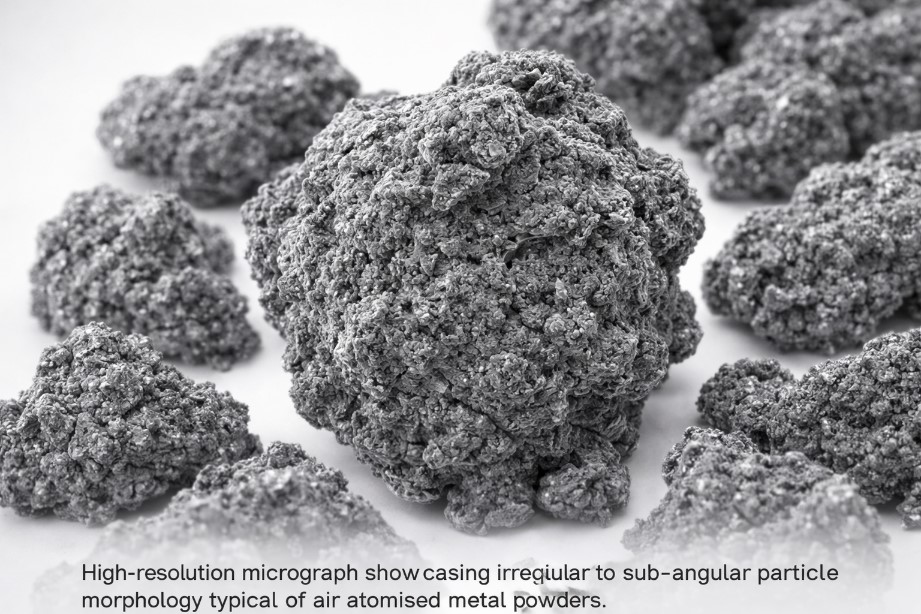

Air and Gas Atomised Powders
Air atomisation uses compressed air as the atomising medium, producing powders with irregular to semi-spherical particle shapes. Gas Atomised Metal Powders are produced by disintegrating a stream of molten metal using high-velocity inert gas jets such as nitrogen or argon, resulting in powders with highly spherical particle morphology.
Key Characteristics
- •Irregular to sub-angular particle morphology (Air)
- •Highly spherical particle shape (Gas)
- •Smooth surface morphology
- •Excellent flowability and packing density
- •Low oxygen content and high purity
- •Consistent batch-to-batch quality
Available Materials
- •Tin powder
- •Customized particle size ranges
- •Controlled carbon, oxygen, and impurity levels (on request)

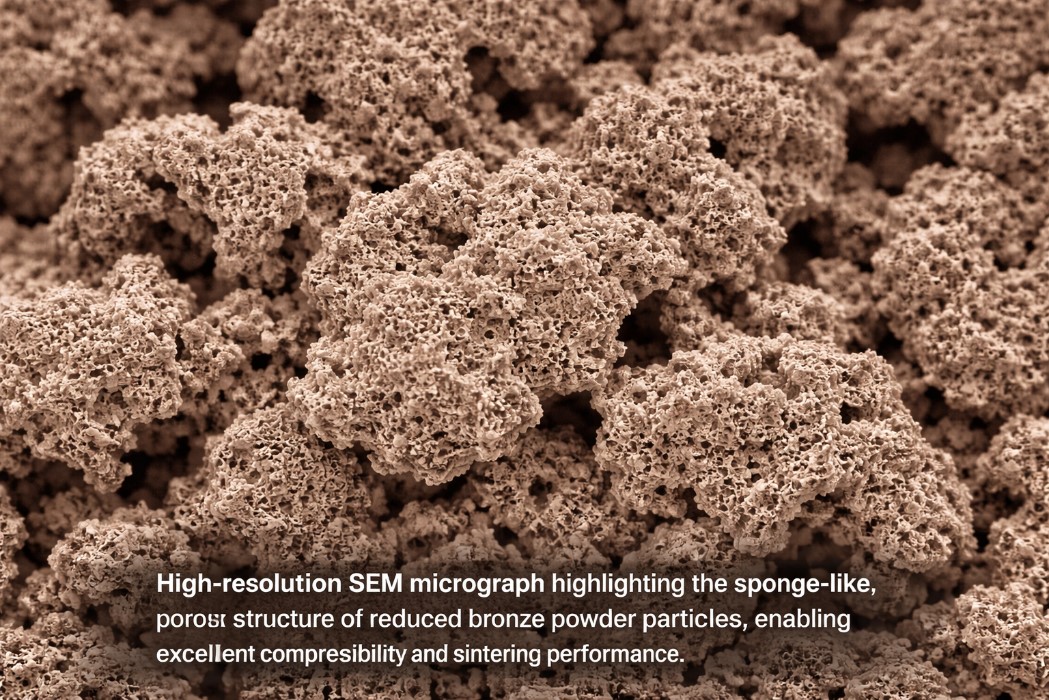

Reduced Powders
Reduced Metal Powders are produced through a controlled solid-state chemical reduction of metal oxides, resulting in powders with a highly porous, irregular particle structure. This unique morphology provides excellent compressibility, green strength, and sintering performance.
Key Characteristics
- •Highly irregular and porous particle morphology
- •High internal surface area
- •Excellent compressibility and green strength
- •Lower apparent density compared to atomised powders
- •Good sintering activity and inter-particle bonding
- •Consistent chemical composition
Available Materials
- •Iron and iron-based powders
- •Bronze Powders
- •Customized particle size ranges
- •Controlled carbon, oxygen, and impurity levels (on request)

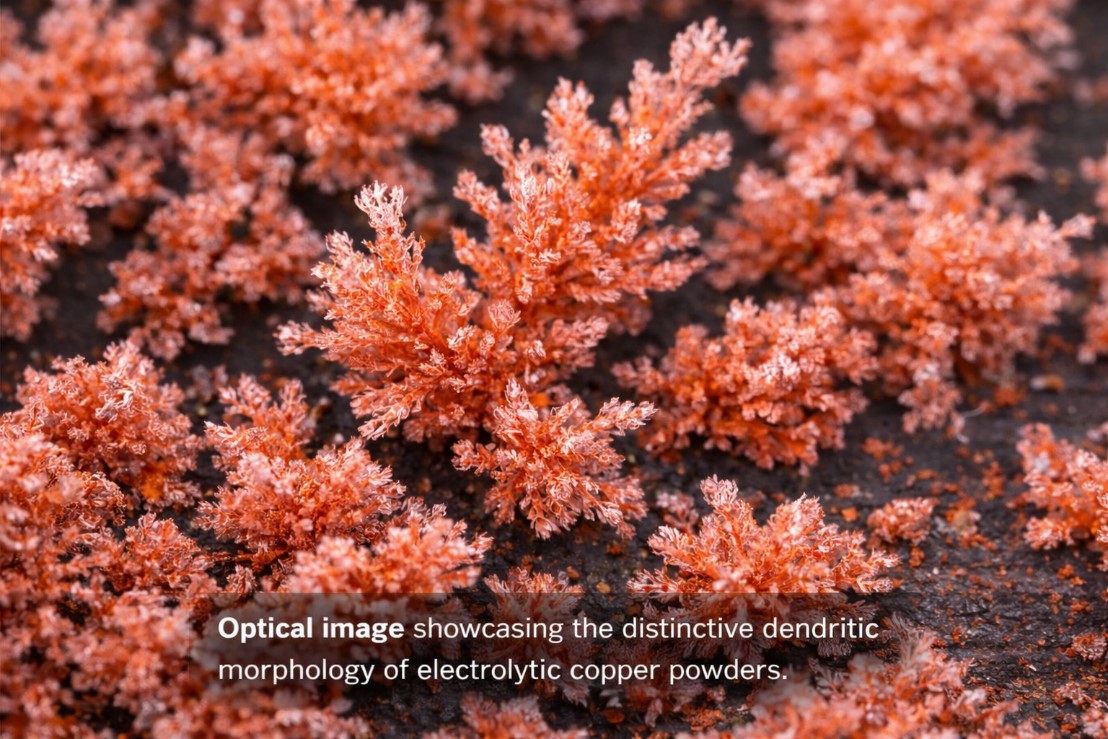

Electrolytic Process
Electrolytic Metal Powders are produced through a controlled electrochemical deposition process, resulting in powders with a highly dendritic, flake-like particle morphology and exceptionally high surface area. These characteristics provide excellent electrical conductivity, reactivity, and bonding behavior.
Key Characteristics
- •Dendritic and flake-like particle structure
- •Very high surface area
- •Excellent electrical and thermal conductivity
- •High chemical purity
- •Superior bonding and sintering behavior
- •Controlled particle size distribution
Available Materials
- •Copper powders
Air and Gas Atomised Powders
We offer both Air Atomised and Gas Atomised powders, each optimized for different applications and performance requirements. Air atomisation provides an economical route for large-volume applications, while Gas atomisation delivers superior spherical morphology and purity for precision applications.
